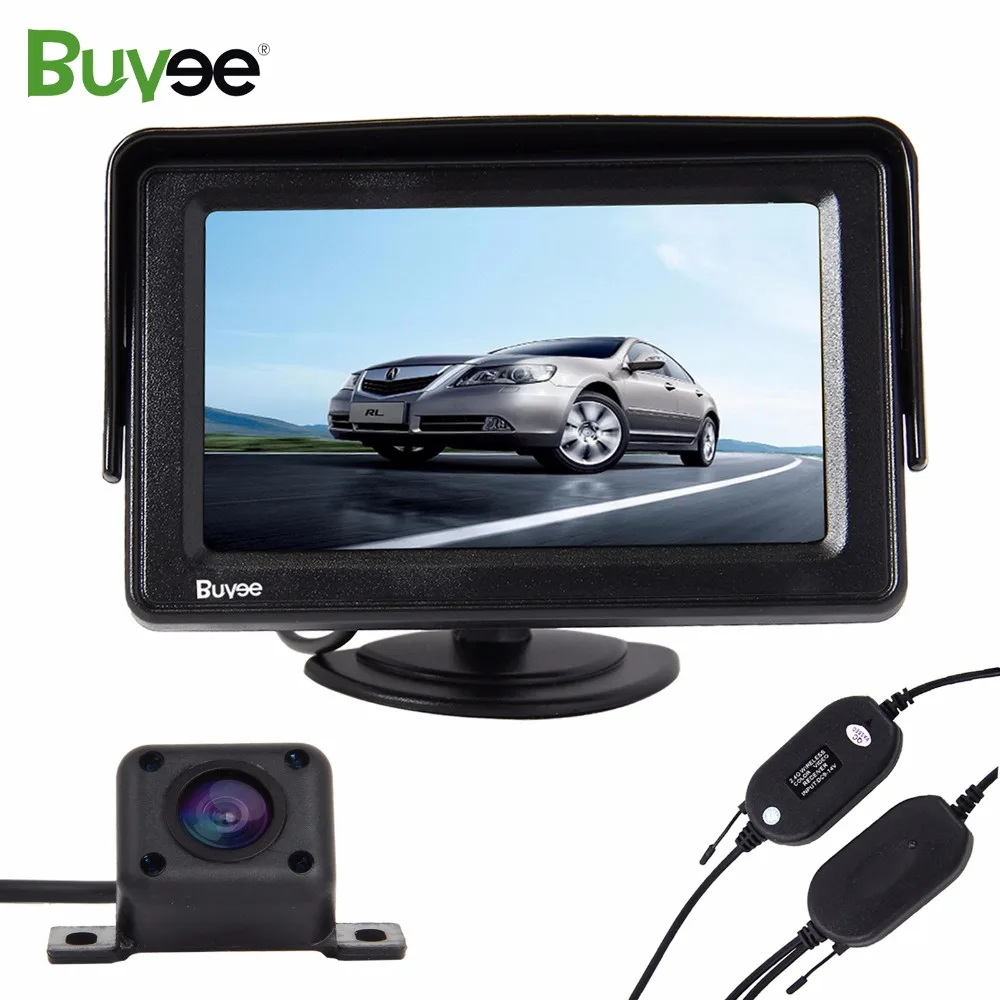

Buyee Wireless Car Rear View Camera Kit 4.3" LCD Car Monitor Rearview display + HD IR Night Vision Parking Assist Reverse Camera

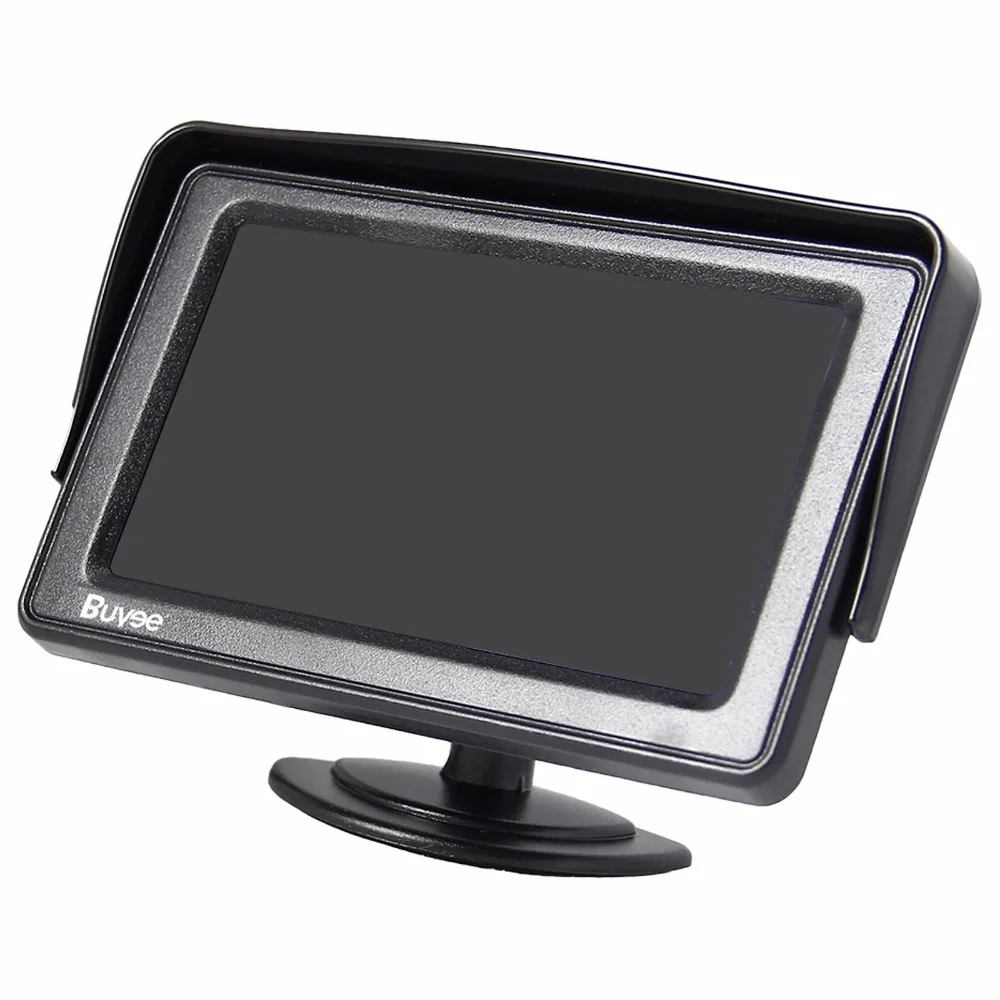

4.3" TFT LCD MONITOR
1. 100% brand new,High quality
2. Screen Size:4.3 inch(16:9)
3. Resolution:320(H) x RGB x 240(V)
4. Model: PAL/NTSC (Automatic throw-over)
5. Power Supply:DC 12V
6. Visible Area:96mm x 54mm
7. Power Consumption:2W
8. 2-channel video input:V1/V2 auto switching(V1 display first)

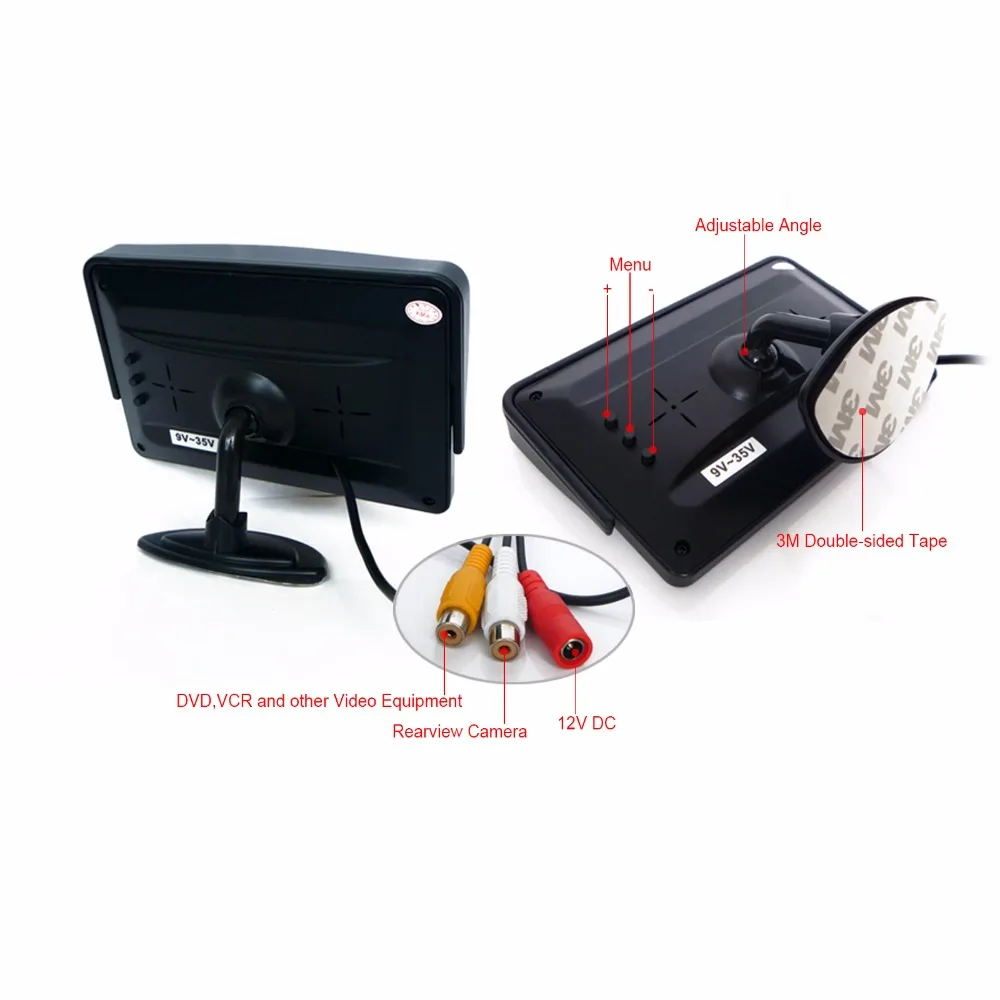

9. Note:please Connect the Rearview camera's power cable with Reversing lamp, and connect camera's video cable with LCD's yellow cable(Video V1),then the LCD will show Camera's video when you are Reversing,and stop playing movie(auto switching)
10. Display blace screen on no signal.

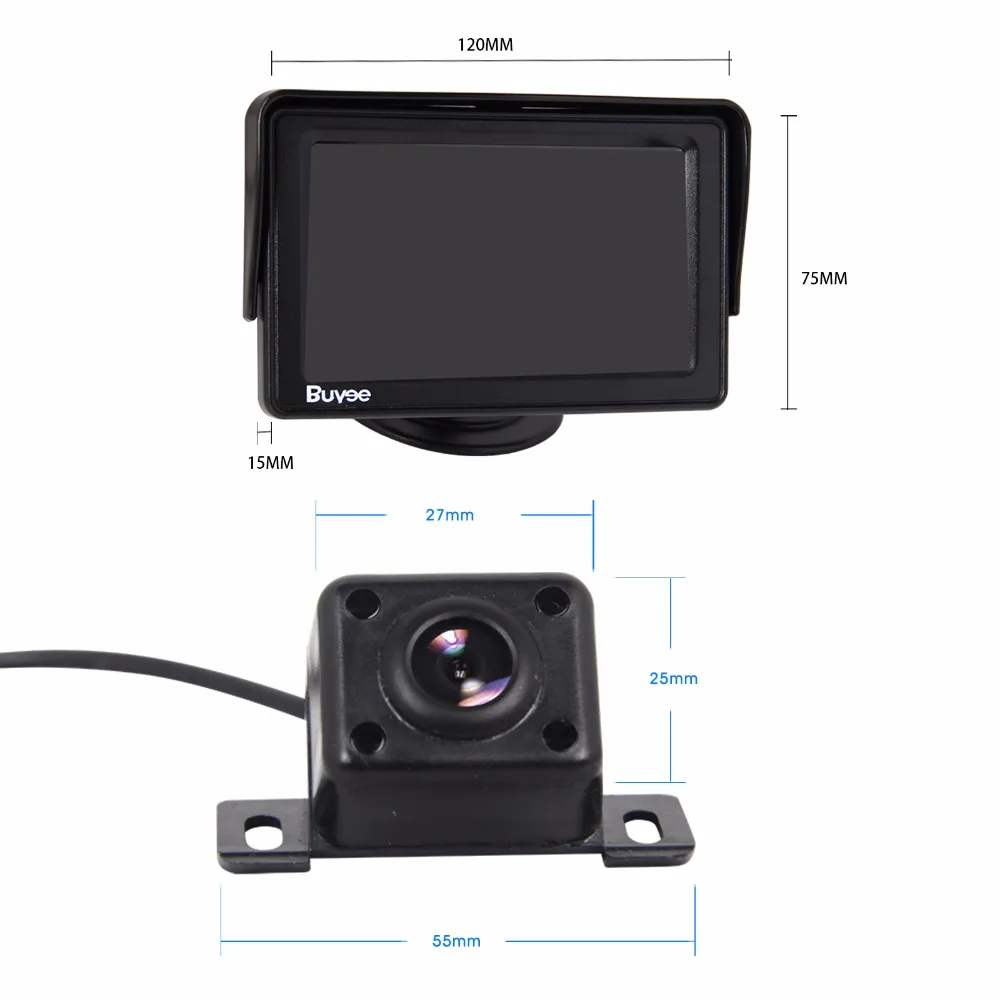

11. Dimensions:120mm(L) x 75mm(W) x 15mm(H)
12. 4.3" Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space.
13. Fit all CCTV camera,car Reversing camera,car DVD player

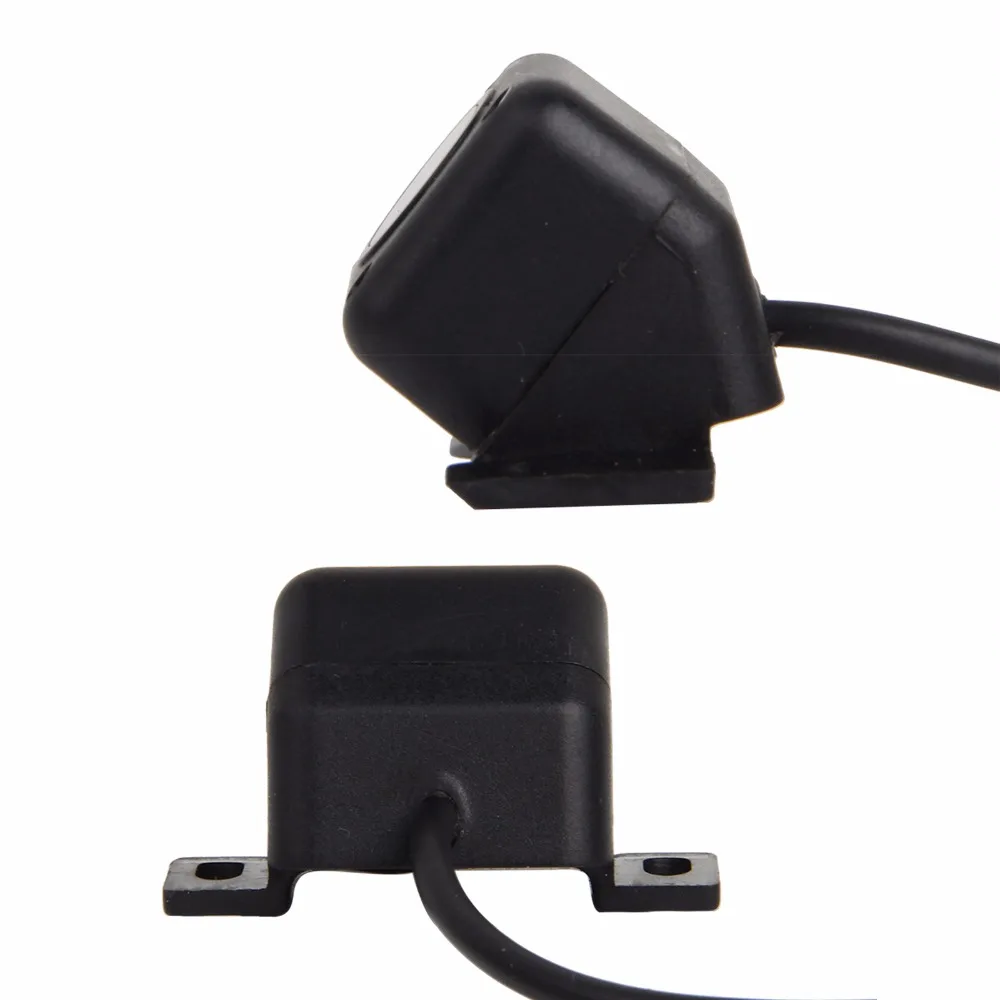

170° Angle Reverse Car Camera
- Water-proof day/night Reversing camera
- Easy installation for DIY usage
- Real-time rear view while back up
- IR Reverse camera with wide view angle 170°
170º Visual Angle
Simple to Install
Greatly ensures driving safety with broad and clear visual angle when backing your car.
Car rear view camera license plate for European vehicles, convenient and simple to install, no damage to your car.
HD Lens, 4 LED IR
Waterproof and Dustproof
HD color CCD lens, with resolution of 720x576, captures wonderful pictures even under low light conditions.
IP rating: IP68
Work properly against various bad weathers and assure driving safety.
There is Parking Assist to help park safely.
The distance lines displayed will show a car's intended path, so drivers can better gauge how far they are from an object.
- Image device 1/4-inch colour
- Infrared IR night vision
- TV system PAL or NTSC
- Resolution 420 TV lines
- Electric Shutter PAL:625 Lines.25 Field /sec NTSC :720 Lines.25 Field/sec
- Effective pixels PAL: 720X 576 NTSC: 720X 480
- Minimum illumination 0.3Lux
- Viewing angle 170°
- S/N ratio >48dB (AGC-OFF)
- Video output RCA connector, 1.0vp-p, 75ohm
- Current consumption ?120mA
- Power supply DC12V
- Operating temperature -30 to 65 degrees centigrade, RH95% Max.
- Storage temperature -35 to 70 degrees centigrade, RH95% Max.
- Other items automatic white balance, AGC and BLC
- Water-proof Yes, to IP68 standard
Take one minute get your camera become a wireless camera

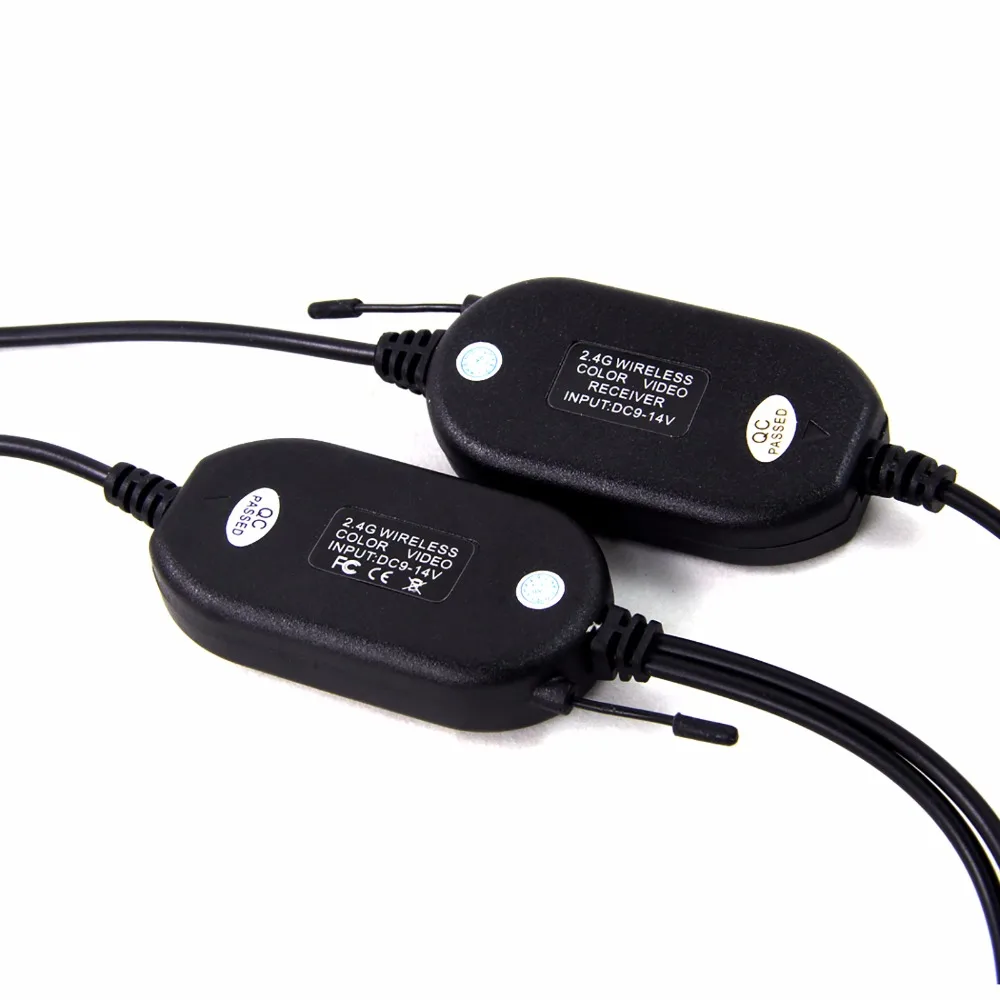

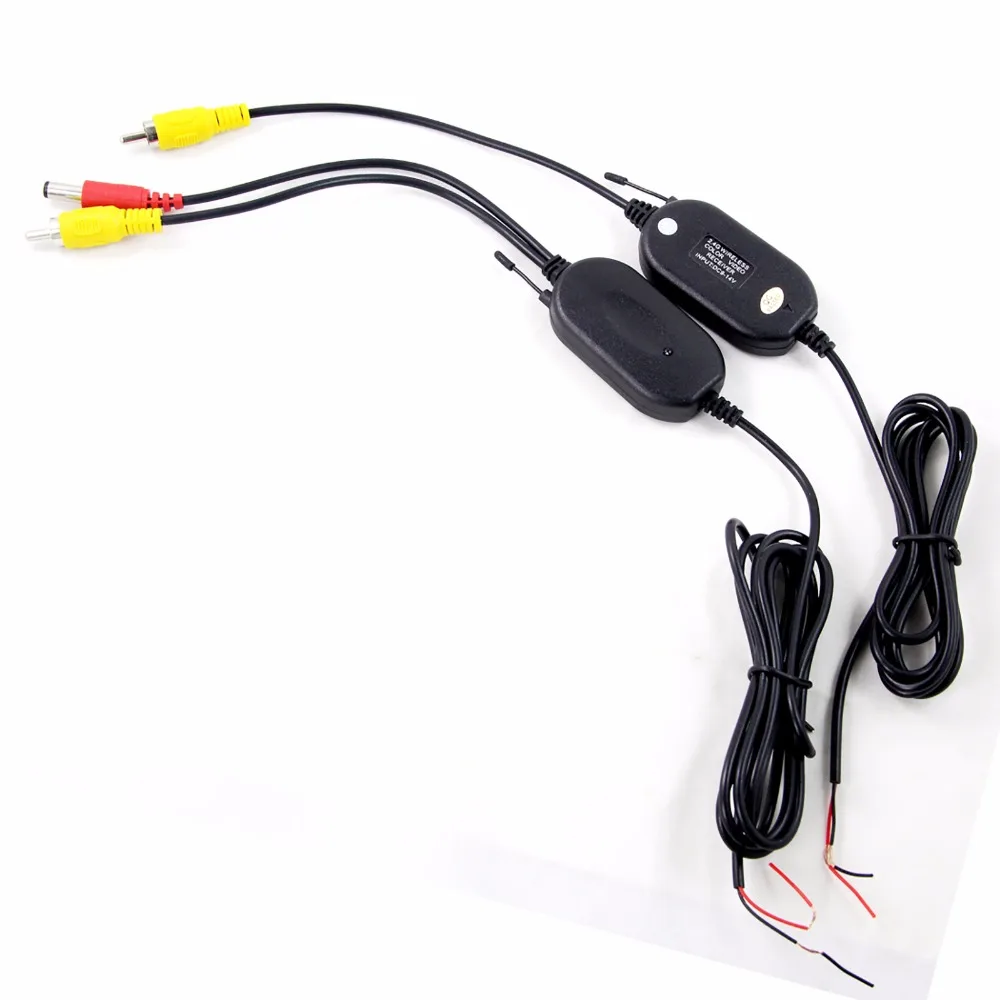

Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)
Work Range:Up to about 50m(Hollowness)
Connects to rear-view camera and front video screen
Fit all RCA composite video connections
Power: DC 12V
Transmitter/Receiver Cable Length:1.5m
- 1 x Car reversing camera
- 1 x 4.3'' Digital TFT LCD Monitor
- 1 x Power Cable for monitor
- 1 x 6m Video cable
- 1 x Power cable for camera
- 1 x Transmitter
- 1 x Receiver
